Descrição

REF.
EFFGG
EFFGO
EFFGM
EFFOO
EFFOM

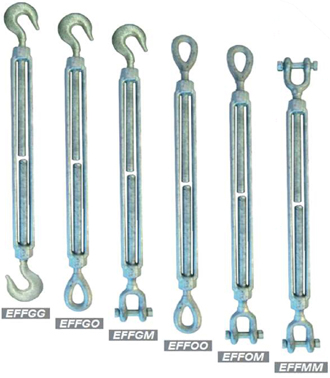

EFFMMEsticadores Forjados
(Alta Capacidade)
Modelos: GxG, GxO, GxM, OxO, OxM, MxM
Norma (USA) FF-T-791-B-F1*

ROSCACORPOø DO
CABOABERTURA
max / minCARGA DE TRABALHO / PESO

(pol)(mm)GXG
(kgf)Unit.
(Kg)GXO
(kgf)Unit.
(Kg)GxM
(kgf)Unit.
(Kg)OxO
(kgf)Unit.
(Kg)OxM
(kgf)Unit.
(Kg)MxM
(kgf)Unit.
(Kg)

06-1021/4"4"3/32"3072061810,1331810,1401810,1602260,1332260,1402260,180

08-1145/16"4,5"1/8"3432413170,2143170,2263170,2603620,2283620,2403620,263

10-1523/8"6"3/16"4192674530,3254530,3404530,3905440,3505440,3705440,420

13-1521/2"6"1/4"4523006800,6466800,6806800,7609970,7009970,7349970,762

13-2291/2"9"1/4"6053766800,7536800,7936800,8329970,7809970,8259970,840

13-3051/2"12"1/4"7574526800,9386800,9886801,1369970,9409970,9809970,997

16-1525/8"6"5/16"4883351.0201,1321.0201,1921.0201,3701.5871,1151.5871,1741.5871,279

16-2295/8"9"5/16"6404111.0201,2921.0201,3601.0201,5641.5871,3001.5871,3651.5871,474

16-3055/8"12"5/16"7924881.0201,4501.0201,4741.0201,6951.5871,5301.5871,6101.5871,700

19-1523/4"6"3/8"5283761.3601,6151.3601,7001.3601,9552.3581,8302.3581,9272.3582,122

19-2293/4"9"3/8"6814521.3601,9381.3602,0401.3602,3462.3582,1532.3582,2672.3582,440

19-3053/4"12"3/8"8335281.3602,4771.3602,6081.3602,9902.3582,5552.3582,6902.3582,775

19-4573/4"18"3/8"1.1386811.3603,0161.3603,1751.3603,6502.3583,1202.3583,2882.3583,500

22-3057/8"12"1/2"8695641.8143,6101.8143,8001.8144,3703.2653.8253.2654,0273.2654,245

22-4577/8"18"1/2"1.1737161.8144,4171.8144,6501.8145,3473.2654,5703.2654,8083.2655,190

25-1521"6"5/8"5994472.2673,7742.2673.9732.2674,5684.5353,9504.5354,1544.5354,313

25-3051"12"5/8"9045992.2674,8452.2675.1002.2675,8654.5355,1704.5355,4404.5355,840

25-4571"18"5/8"1.2097522.2676,0302.2676.3502.2677,3004.5356,3554.5356,6904.5357,300

25-6101"24"5/8"1.5149042.2677,3242.2677.7102.2678,8664.5358.0754.5358,5004.5358,436

32-3051 1/4"12"7/8"9636583.1758,1903.1758.6183.1759,9006.8949,1356.8949,6166.89410,704

32-4571 1/4"18"7/8"1.2708133.17510,3803.17510,9303.17512,5706.89411,2006.89411,7936.89412,065

32-6101 1/4"24"7/8"1.5809703.17510,7723.17511,3393.17513,1106.89412,3706.89413,0206.89414,150

38-3051 1/2"12"1 1/8"1.0417373.40111,6333.40112,2463.40114,0809.70613,4009.70614,1069.70616,100

38-4571 1/2"18"1 1/8"1.3468893.40113,4423.40114,1503.40116,2729.70615,6759.70616,5009.70618,460

38-8101 1/2"24"1 1/8"1.6511.0413.40116,4353.40117,3303.40119,9309.70619,0459.70620,0509.70621,590

44-4571 3/4"18"1 3/8"1.5041.046      12.70019,85512.70020,90012.70022,100

44-6101 3/4"24"1 3/8"1.8081.199      12.70021,03012.70022,13512.70023,770

51-6102"24"1 5/8"1.9481.339      16.78243.95016.78246,26616.78252,163

64-6102 1/2"24"2 1/8"2.0881.478        27.21583,00027.21590,720

70-6102 3/4"24"2 3/8"2.1721.562        29.50097,07029.500112,490

Fator de Segurança 5 x a carga de trabalho.

Os Esticadores Forjados de alta capacidade para cabos de aço e cordoalhas são indicados para realização de tarefas que exigem alto nível de resistência a tração e condições severas de uso.

Corpo e terminais forjados em aço carbono.

Norma FF-T-791-B-F1.

Acabamento galvanizado a fogo.
